Service and Cost
Typical Cost
The cost to replace or repair an evaporative emission control canister, often referred to as a charcoal canister, can vary based on several factors, including the make and model of the vehicle, and whether you choose an original equipment manufacturer (OEM) part or an aftermarket part. Here's a general breakdown of the costs involved:
1. Replacement Costs:
- Parts: The cost of a new evaporative emission control canister typically ranges from $150 to $400. OEM parts tend to be on the higher end of this range, while aftermarket parts are usually more affordable.
- Labor: Labor costs typically range from $125 to $375, representing 1-3 hours of work at $125 per hour. Some vehicles may require more extensive labor due to the canister's location, which can increase the cost.
2. Repair Costs:
- In some cases, the canister might not need to be fully replaced and can be repaired. This could involve fixing leaks or replacing certain components like valves or hoses. Repair costs typically start at $125 for one hour of labor, plus the cost of any necessary parts ($50-$150).
3. Additional Costs:
- If the canister failure has caused other issues, such as triggering the check engine light, additional diagnostics ($125) or repairs might be necessary, which can add to the overall cost.
Overall, the total cost for replacing or repairing an evaporative emission control canister can range from approximately $275 to $775. It's always a good idea to get a few quotes from different repair shops to ensure you're getting a fair price. Additionally, if you're comfortable with car repairs, you might consider doing the replacement yourself to save on labor costs, but this depends on your skill level and the complexity of the job.
Typical Service Procedure
- Diagnosis
- A comprehensive diagnostic process is essential to confirm that the EVAP canister is the root cause of the issue. This includes:
- Using advanced diagnostic tools to retrieve error codes from the vehicle’s onboard computer.
- Performing a smoke test to detect leaks in the EVAP system.
- Conducting a visual inspection to identify physical damage, cracks, or blockages in the canister or related components.
- A comprehensive diagnostic process is essential to confirm that the EVAP canister is the root cause of the issue. This includes:
- Removal of the Old Canister
- If the EVAP canister is determined to be faulty, it must be carefully removed. The process includes:
- Disconnecting the vehicle battery to prevent accidental electrical issues.
- Removing protective covers or shields that may obstruct access to the canister.
- Disconnecting all hoses, vapor lines, and electrical connectors attached to the canister. These parts must be handled gently to avoid damage.
- Unbolting or unclipping the canister from its mounting bracket, ensuring no harm comes to the surrounding components during removal.
- If the EVAP canister is determined to be faulty, it must be carefully removed. The process includes:
- Inspection of Related Components
- While the EVAP canister is removed, a detailed inspection of associated components is conducted. This includes:
- Checking hoses, valves (such as the purge valve and vent valve), and connectors for wear, cracks, or clogs.
- Replacing any worn or faulty components to ensure the entire system operates efficiently.
- While the EVAP canister is removed, a detailed inspection of associated components is conducted. This includes:
- Installation of the New Canister
- Installing a replacement EVAP canister involves:
- Properly positioning the new canister in its mounting bracket and securing it with bolts or clips.
- Reattaching hoses, vapor lines, and electrical connectors, ensuring all connections are secure and leak-free.
- Reinstalling any covers or shields removed during the process.
- Installing a replacement EVAP canister involves:
- System Testing
- After installation, thorough testing is performed to verify the repair:
- Running the engine and monitoring for error codes or warning lights.
- Conducting a smoke test to confirm there are no leaks in the system.
- Evaluating the vehicle’s performance and fuel efficiency to ensure no adverse effects from the repair.
- After installation, thorough testing is performed to verify the repair:
- Resetting the Vehicle’s Computer
- If diagnostic trouble codes (DTCs) were triggered during the issue, these are cleared using professional diagnostic tools.
- This step ensures the vehicle's onboard systems are updated with the repair and ready for optimal operation.
- Documentation
- Comprehensive documentation of the repair or replacement process is created. This includes:
- A list of replaced parts and their specifications.
- Details of all tests performed to confirm the repair.
- This record ensures warranty validation and provides a reference for future maintenance needs.
- Comprehensive documentation of the repair or replacement process is created. This includes:
Why Choose Us for Your EVAP System Repairs?
Our experienced technicians are highly trained in diagnosing and repairing EVAP systems with precision and efficiency. We use advanced diagnostic equipment and high-quality OEM or equivalent replacement parts to ensure long-lasting results. Trust us to restore your vehicle's emission control system to peak performance while adhering to environmental standards.
What is an Evaporative Emissions Control Canister and What Does It Do?

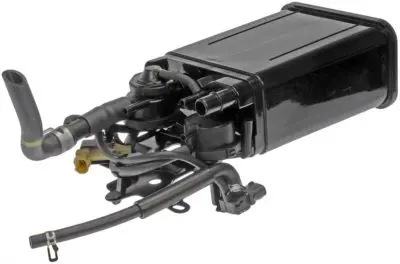

The Evaporative Emission Control (EVAP) canister, often referred to as the charcoal canister, is a component of a vehicle's emissions control system. Its primary function is to capture and store fuel vapors from the fuel tank, preventing them from escaping into the atmosphere. This helps reduce air pollution and improves air quality.Here's how it works:
1. Fuel Vapor Capture: When fuel sits in the tank, it can evaporate, especially in warm conditions. The EVAP canister captures these vapors before they can escape into the environment.
2. Charcoal Filtration: The canister is filled with activated charcoal, which has a large surface area and is highly effective at adsorbing fuel vapors. The vapors are trapped in the charcoal until they can be safely processed.
3. Purge Process: When the engine is running and conditions are appropriate, the vehicle's engine control unit (ECU) opens a purge valve. This allows the stored vapors to be drawn into the engine's intake manifold, where they are burned in the combustion process. This not only prevents pollution but also improves fuel efficiency by utilizing the captured vapors as fuel.
4. System Monitoring: Modern vehicles are equipped with sensors and diagnostic systems to monitor the EVAP system's performance. If a leak or malfunction is detected, the vehicle's onboard diagnostics system (OBD-II) will trigger a check engine light to alert the driver.Overall, the EVAP canister plays a vital role in reducing vehicle emissions and ensuring compliance with environmental regulations. Regular maintenance and inspection of the EVAP system can help prevent issues such as fuel odors, decreased fuel efficiency, and failed emissions tests.
Signs of a bad Evaporative Emissions Control Canister
The Evaporative Emission Control (EVAP) canister, also known as the charcoal canister, is a critical component of a vehicle's emission control system. It captures and stores fuel vapors from the fuel tank, preventing them from escaping into the atmosphere. Over time, the EVAP canister can fail, and here are some common signs of failure:
1. Check Engine Light: One of the most common indicators of an EVAP system issue is the illumination of the check engine light. The vehicle's onboard diagnostic system may detect a problem with the EVAP system and trigger the light.
2. Fuel Odor: A noticeable fuel smell around the vehicle, especially near the rear where the canister is typically located, can indicate a problem. This could be due to a leak or a saturated canister that is no longer effectively capturing vapors.
3. Poor Engine Performance: A failing EVAP canister can lead to issues such as rough idling, stalling, or difficulty starting the engine. This is because the system may be allowing excess fuel vapors into the engine, disrupting the air-fuel mixture.
4. Decreased Fuel Efficiency: If the EVAP system is not functioning properly, it can lead to a decrease in fuel efficiency. This is because the system may be venting fuel vapors that would otherwise be used in the combustion process.
5. Failed Emissions Test: A malfunctioning EVAP system can cause a vehicle to fail an emissions test. This is because the system is designed to prevent fuel vapors from escaping, and a failure can lead to increased emissions.
6. Hissing Sound: A hissing sound when the engine is running or immediately after it is turned off can indicate a vacuum leak in the EVAP system, which may be related to the canister or its associated components.
7. Difficulty Filling the Fuel Tank: If there is a blockage or restriction in the EVAP system, it can cause problems when refueling. The fuel nozzle may keep shutting off, or it may be difficult to fill the tank completely.If you suspect an issue with the EVAP canister, it's important to have it diagnosed and repaired by a qualified technician. Ignoring these signs can lead to more significant problems and potentially costly repairs.
