Service and Cost
Typical Cost
The cost to replace or repair fuel injector O-rings can vary based on several factors, including the make and model of the vehicle and the quality of parts you choose. Generally, the cost for replacing fuel injector O-rings can range from $150 to $450. Here's a breakdown of the costs involved:
1. Parts: The O-rings themselves are relatively inexpensive, often costing between $20 and $50 for a set. However, prices can vary depending on the brand and quality of the O-rings.
2. Labor: Labor costs typically range from $125 to $375, as the job usually takes 1-3 hours to complete. The process involves removing the fuel injectors, replacing the O-rings, and then reinstalling the injectors.
3. Additional Costs: In some cases, additional parts or services might be needed, such as cleaning the fuel injectors or replacing other related components, which could increase the overall cost by $100-$200.
Typical Service Procedure
When replacing or repairing fuel injector O-rings, several steps and components are typically involved to ensure the proper functioning of the fuel injection system. Here's what is generally included in the process:
1. Diagnosis: Our technicians perform a thorough diagnosis to confirm that the O-rings are the source of the problem, which could be fuel leaks, poor engine performance, or fuel odor.
2. Preparation: We prepare your vehicle for the repair, which includes disconnecting the battery to ensure safety and removing any components that obstruct access to the fuel injectors, such as the engine cover or intake manifold.
3. Fuel System Depressurization: The fuel system is depressurized to prevent fuel from spraying when the injectors are removed. This is typically done by removing the fuel pump relay and running the engine until it stalls.
4. Removal of Fuel Injectors: The fuel rail, which holds the injectors, is carefully removed. The injectors are then detached from the fuel rail, taking care not to damage them.
5. Inspection and Cleaning: Our technicians thoroughly inspect the injectors and the surrounding area for any signs of damage or wear. The injector ports and the fuel rail are cleaned to ensure a proper seal with the new O-rings.
6. Replacement of O-Rings: The old O-rings are removed from the injectors. New O-rings, which are typically included in a fuel injector service kit, are lubricated with a small amount of engine oil or a special lubricant to ensure a good seal and to prevent damage during installation.
7. Reinstallation: The injectors, now fitted with new O-rings, are reinstalled into the fuel rail and then into the engine. Our technicians take special care to ensure they are seated properly to prevent leaks.
8. Reassembly: Any components that were removed to access the injectors are reinstalled. This includes the fuel rail, intake manifold, and any other parts that were taken off.
9. Testing: Once everything is reassembled, we start your vehicle to check for leaks and to ensure that the engine is running smoothly. A scan tool may be used to check for any diagnostic trouble codes.
10. Final Inspection: Our technicians perform a final inspection to ensure that there are no fuel leaks and that the repair has been successful.

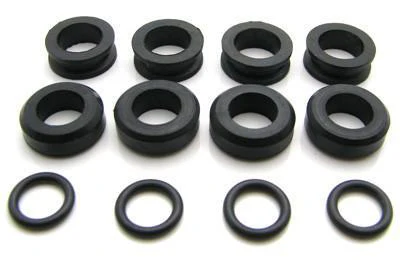

What is a Fuel Injector O-Ring and What Does It Do?
Fuel injector O-rings are small but crucial components in a vehicle's fuel injection system. They are rubber or elastomeric seals that fit around the fuel injectors, which are responsible for delivering fuel into the engine's combustion chambers.
The primary function of these O-rings is to create a tight seal between the fuel injector and the fuel rail or intake manifold, preventing fuel leaks and ensuring that the fuel is delivered at the correct pressure and in the right amount.There are typically two O-rings per injector: one at the top, sealing the connection between the injector and the fuel rail, and one at the bottom, sealing the connection between the injector and the intake manifold.
Over time, these O-rings can wear out, become brittle, or crack due to exposure to heat, fuel, and engine vibrations. If they fail, it can lead to fuel leaks, reduced engine performance, increased emissions, and even potential fire hazards.
Regular inspection and maintenance of fuel injector O-rings are important to ensure the efficient and safe operation of the vehicle's engine. If any signs of wear or damage are detected, the O-rings should be replaced promptly to maintain the integrity of the fuel injection system.
Signs of a bad Fuel Injector O-Ring
Fuel injector O-rings are critical components that ensure a proper seal between the fuel injectors and the engine. When these O-rings fail, it can lead to a variety of issues. Here are some common signs of failure for fuel injector O-rings:
1. Fuel Smell: One of the most noticeable signs of a failing fuel injector O-ring is a strong smell of gasoline. This occurs because the O-ring is no longer providing a proper seal, allowing fuel to leak out.
2. Fuel Leaks: Visible fuel leaks around the fuel injector area are a clear indication of O-ring failure. This can often be seen as wet spots or puddles of fuel on the engine or ground.
3. Engine Misfires: A compromised seal can lead to an improper air-fuel mixture, causing the engine to misfire. This can result in rough idling, hesitation during acceleration, or a noticeable drop in engine performance.
4. Poor Fuel Economy: Leaking fuel due to faulty O-rings can lead to increased fuel consumption, as the engine may not be operating efficiently.
5. Check Engine Light: A failing O-ring can trigger the check engine light. This is often due to the engine control unit (ECU) detecting an imbalance in the air-fuel mixture or a misfire.
6. Increased Emissions: A faulty O-ring can cause incomplete combustion, leading to higher emissions. This might be noticeable during an emissions test or if there is visible smoke from the exhaust.
7. Engine Stalling: In severe cases, a significant fuel leak can cause the engine to stall, as the engine may not be receiving the necessary amount of fuel to maintain operation.
8. Soot or Carbon Build-up: Leaking fuel can lead to soot or carbon deposits around the injector area, which can be a visual clue of O-ring failure.If you suspect that the fuel injector O-rings are failing, it is important to address the issue promptly. Continuing to drive with faulty O-rings can lead to more serious engine problems and potential safety hazards due to fuel leaks. Replacing the O-rings is typically a straightforward repair, but it is advisable to have it done by a professional to ensure proper installation and to check for any additional issues.
