Service and Cost
Typical Cost
The cost to replace or repair a fuel gauge sender can vary widely depending on several factors, including the make and model of the vehicle and the quality of parts you choose. Here's a general breakdown:
1. Parts Cost: The fuel gauge sender unit itself can range from $50 to $200 or more. The price depends on the vehicle's make and model, as some vehicles may require more expensive or specialized parts.
2. Labor Cost: Labor costs are calculated at our shop rate of $125 per hour. Most fuel sender replacements take between 1.5 to 2.5 hours, making the typical labor cost range from $187.50 to $312.50.
3. Total Cost: Combining parts and labor, the total cost to replace a fuel gauge sender typically ranges from $237.50 to $512.50. Luxury or high-performance vehicles may incur higher costs.
4. Repair vs. Replacement: In some cases, the issue with the fuel gauge sender might be repairable, which could reduce costs. However, often the sender unit is replaced rather than repaired.
5. Additional Costs: If the fuel tank needs to be drained or removed to access the sender unit, this could add an additional hour of labor ($125). Additionally, if other components are found to be faulty during the repair, this could increase the overall cost.
Typical Service Procedure
The fuel gauge sender, also known as the fuel sending unit, is a critical component of a vehicle's fuel system that measures the amount of fuel in the tank and sends this information to the fuel gauge on the dashboard. When it comes to replacing or repairing the fuel gauge sender, several components and steps are typically involved:
1. Fuel Sending Unit: This is the primary component that may need replacement. It consists of a float, a metal rod or arm, and a variable resistor. The float moves with the fuel level, and the arm adjusts the resistor to send the appropriate signal to the fuel gauge.
2. Gasket or Seal: When replacing the fuel sending unit, it's important to also replace the gasket or seal that ensures a tight fit and prevents fuel leaks. This is typically included with a new sending unit.
3. Electrical Connections: The sending unit is connected to the vehicle's electrical system. Ensuring that all electrical connections are secure and free of corrosion is crucial. This may involve cleaning or replacing connectors.
4. Fuel Tank Access: Depending on the vehicle, accessing the fuel sending unit may require removing the fuel tank or accessing it through a panel in the trunk or under the rear seat. This step is necessary for both repair and replacement.
5. Calibration: After installation, the new sending unit may need to be calibrated to ensure accurate readings on the fuel gauge. This can involve adjusting the float arm or using diagnostic tools.
6. Testing: Once installed, the system should be tested to ensure that the fuel gauge is working correctly. This involves checking the gauge reading at different fuel levels.
7. Additional Parts: In some cases, other parts of the fuel system, such as the fuel pump or fuel filter, may be inspected or replaced if they are integrated with the sending unit or if they show signs of wear.
8. Labor: The process of replacing or repairing the fuel gauge sender can be labor-intensive, especially if the fuel tank needs to be removed. Professional installation ensures the job is done correctly and safely.
Overall, replacing or repairing a fuel gauge sender involves ensuring that all components are functioning correctly and that the system is sealed and calibrated to provide accurate fuel level readings.
What is a Fuel Level Sending Unit and What Does It Do?

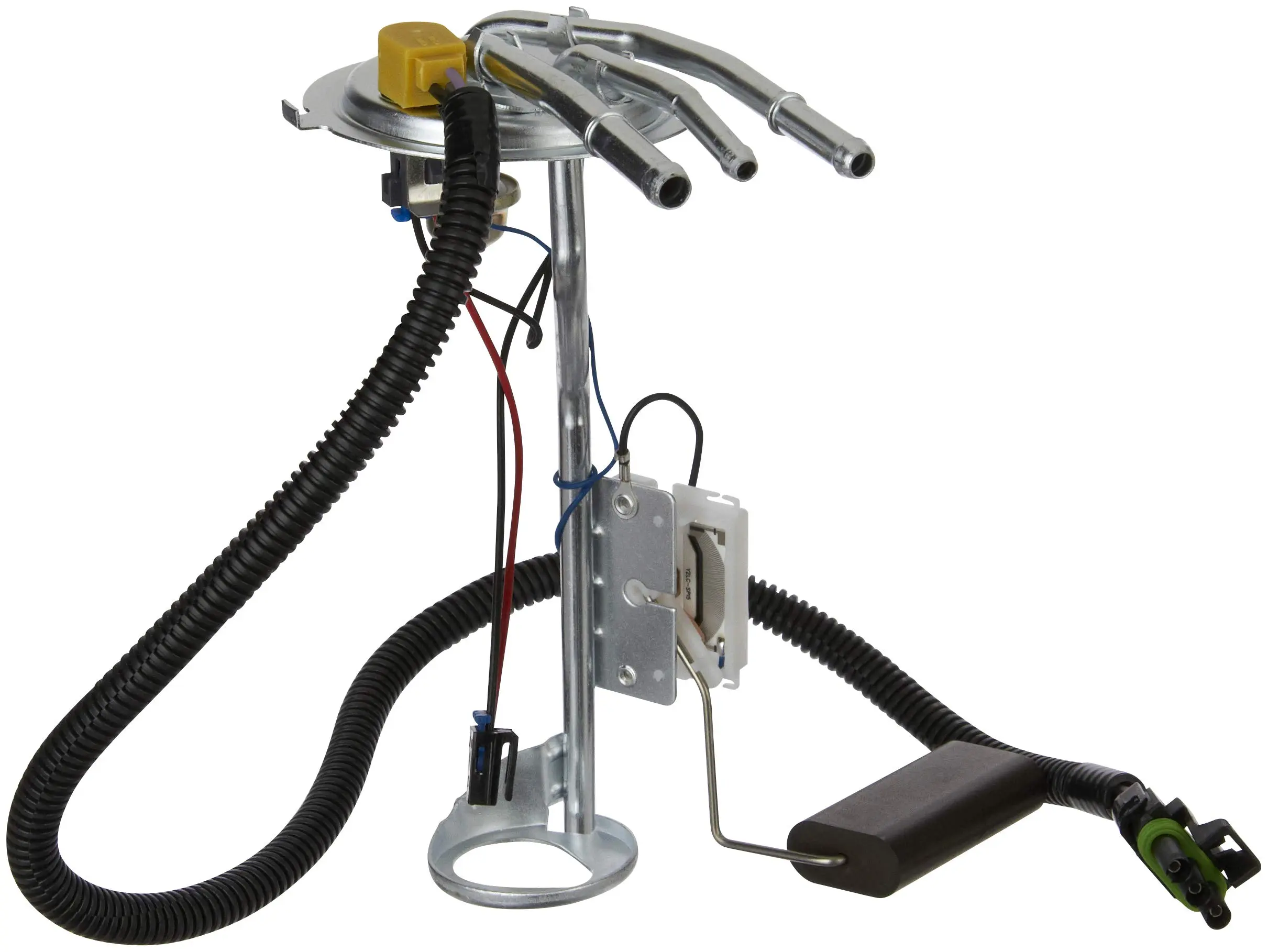

The fuel gauge sender, also known as the fuel level sensor or fuel sending unit, is a component in a vehicle's fuel tank that measures the amount of fuel remaining and sends this information to the fuel gauge on the dashboard. It typically consists of a float, an arm, and a variable resistor (or potentiometer). Here's how it works:
1. Float: The float is a buoyant device that sits on the surface of the fuel in the tank. As the fuel level changes, the float moves up or down accordingly.
2. Arm: The float is attached to a metal rod or arm. As the float moves with the fuel level, the arm pivots around a fixed point.
3. Variable Resistor: The arm is connected to a variable resistor. As the arm moves, it changes the resistance in the circuit. This change in resistance alters the electrical current flowing through the circuit.
4. Signal to Fuel Gauge: The change in electrical current is sent as a signal to the fuel gauge on the vehicle's dashboard. The fuel gauge interprets this signal and displays the corresponding fuel level to the driver.The fuel gauge sender is crucial for providing the driver with accurate information about how much fuel is left in the tank, helping to prevent running out of fuel unexpectedly. Over time, the sender can wear out or become faulty, leading to inaccurate readings on the fuel gauge.
Signs of a bad Fuel Level Sending Unit
The fuel gauge sender, also known as the fuel sending unit, or fuel level sending unit is a component of a vehicle's fuel system that measures the amount of fuel in the tank and sends this information to the fuel gauge on the dashboard. When the fuel gauge sender starts to fail, it can lead to inaccurate readings and other issues. Here are some common signs of failure for the fuel gauge sender:
1. Inaccurate Fuel Gauge Readings: One of the most common signs of a failing fuel gauge sender is an inaccurate fuel gauge. This can manifest as the gauge showing full when the tank is not, or empty when there is still fuel left. The needle may also move erratically or get stuck in one position.
2. Stuck Fuel Gauge: If the fuel gauge remains stuck on full or empty, it could indicate a problem with the sender. This might happen if the float in the sender unit is stuck or if there is a mechanical failure within the unit.
3. Fluctuating Fuel Gauge: A fuel gauge that fluctuates rapidly or inconsistently can be a sign of a failing sender. This could be due to a poor electrical connection or a worn-out sender unit.
4. Check Engine Light: In some vehicles, a malfunctioning fuel gauge sender can trigger the check engine light. This is because the vehicle's computer may detect an issue with the fuel level sensor circuit.
5. Sudden Changes in Fuel Level: If you notice sudden and unexplained changes in the fuel level reading, it could be due to a faulty sender. This might happen if the float arm is damaged or if there is an electrical issue.
6. Fuel Gauge Not Responding: If the fuel gauge does not respond at all when you turn on the ignition, it could be a sign that the sender is not functioning. This could be due to a complete failure of the sender unit or a disconnection in the wiring.
7. Inconsistent Fuel Consumption Readings: If your vehicle has a trip computer that calculates fuel consumption, a faulty sender can lead to incorrect fuel economy readings.If you suspect that the fuel gauge sender is failing, it is important to have it diagnosed and repaired by a professional mechanic. Ignoring the issue can lead to running out of fuel unexpectedly, which can be inconvenient and potentially dangerous.
