Service and Cost
Typical Cost
1. Parts Cost: The camshaft seal itself is usually not very expensive, typically ranging from $10 to $50. However, the cost can vary based on the brand and quality of the seal.
2. Labor Costs: The labor cost is the more significant part of the expense when replacing a camshaft seal. This is because accessing the camshaft seal often requires removing several components, such as the timing belt or chain, which can be labor-intensive. Labor costs can range from $200 to $600 or more, depending on the complexity of the job.
3. Additional Parts and Services: In some cases, additional parts may need to be replaced or serviced during the repair, such as the timing belt, gaskets, or other seals. This can add to the overall cost.
4. Total Cost: Overall, the total cost to replace a camshaft seal can range from approximately $250 to $700 or more. Luxury or performance vehicles may incur higher costs due to more complex engine designs and higher labor rates.
Typical Service Procedure
1. Diagnosis: Before any repair or replacement, a thorough diagnosis is performed to confirm that the camshaft seal is the source of the oil leak. This may involve visual inspection and sometimes using diagnostic tools.
2. Preparation The vehicle is safely lifted and secured to access the engine components. The battery is usually disconnected to ensure safety during the repair process.
3. Removal of Components Depending on the vehicle, several components may need to be removed to access the camshaft seal. This often includes the timing belt or chain, timing cover, valve cover, and possibly other engine accessories. Care is taken to mark or note the position of components to ensure proper reassembly.
4. Seal Removal The old camshaft seal is carefully removed. This may require special tools to avoid damaging the camshaft or surrounding components.
5. Inspection The camshaft and surrounding areas are inspected for wear or damage. If any other components are worn or damaged, they may also need to be replaced.
6. Installation of New Seal A new camshaft seal is installed. It’s important that the seal is properly seated to prevent future leaks. Lubrication may be applied to the seal to ensure it fits smoothly and functions correctly.
7. Reassembly All previously removed components are reinstalled in the reverse order of removal. The timing belt or chain is re-tensioned and aligned according to manufacturer specifications.
8. Testing Once reassembled, the engine is started and run to check for leaks and ensure everything is functioning properly. The vehicle may be test-driven to confirm the repair was successful.
9. Final Checks A final inspection is performed to ensure there are no leaks and all components are securely fastened. The area around the repair is cleaned to remove any residual oil or debris.
10. Documentation: The repair is documented, including any additional parts replaced or issues found during the process.Replacing a camshaft seal can be a complex task, often requiring specific tools and expertise, especially if it involves dealing with the timing belt or chain. It’s typically recommended to have this repair performed by a qualified mechanic.

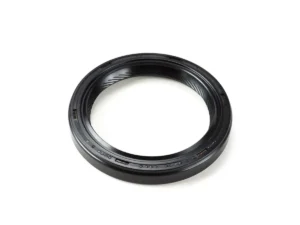

What is a Camshaft Seal and What Does It Do?
The camshaft seal is a component in an internal combustion engine, specifically in the engine's valvetrain system. Its primary function is to prevent oil from leaking out of the engine where the camshaft exits the cylinder head. Here’s a more detailed explanation of its role and importance:
1. Location: The camshaft seal is located at the end of the camshaft, which is typically found at the top of the engine in overhead camshaft (OHC) designs. The camshaft itself is responsible for opening and closing the engine's intake and exhaust valves in synchronization with the movement of the pistons.
2. Function: The seal ensures that the oil, which lubricates the camshaft and other components within the cylinder head, does not leak out. This is crucial because oil leakage can lead to reduced lubrication, increased friction, and potential engine damage.
3. Material: Camshaft seals are usually made from durable materials like rubber or silicone, which can withstand the high temperatures and pressures found in an engine. They are designed to maintain a tight seal around the rotating camshaft.
4. Signs of Wear: Over time, camshaft seals can wear out or become damaged due to heat, pressure, and the natural aging of materials. Common signs of a failing camshaft seal include oil leaks at the front or rear of the engine, oil on the timing belt or chain, and a noticeable drop in engine oil levels.
5. Maintenance: Replacing a camshaft seal typically involves removing components like the timing belt or chain, which can be a complex task. Therefore, it is often done in conjunction with other maintenance tasks, such as timing belt replacement, to save on labor costs.Maintaining a properly functioning camshaft seal is essential for the longevity and efficiency of an engine, as it helps ensure that the engine remains well-lubricated and free from oil leaks.
Signs of a bad Camshaft Seal
The camshaft seal is a critical component in an engine, designed to prevent oil from leaking out of the engine where the camshaft exits the cylinder head. If the camshaft seal begins to fail, it can lead to several issues. Here are some common signs of a failing camshaft seal:
1. Oil Leaks: One of the most obvious signs of a failing camshaft seal is oil leaking from the front or rear of the engine. You might notice oil spots under your vehicle or oil accumulating on the engine itself.
2. Oil on Timing Belt or Chain: If the camshaft seal is leaking, oil can contaminate the timing belt or chain. This can lead to premature wear or failure of these components, which can cause significant engine damage.
3. Burning Oil Smell: If oil leaks from the camshaft seal onto hot engine parts, it can produce a burning oil smell. This is often noticeable when the engine is running or immediately after turning it off.
4. Decreased Oil Levels: A leaking camshaft seal can lead to a noticeable drop in engine oil levels. If you find yourself needing to add oil more frequently, it could be due to a leak at the camshaft seal.
5. Engine Misfires or Rough Idling: In some cases, oil leaking from a camshaft seal can affect the ignition system or other engine components, leading to misfires or rough idling.
6. Check Engine Light: While a failing camshaft seal itself might not trigger the check engine light, the consequences of the leak, such as misfires or other engine issues, might cause the light to illuminate.
7. Visible Wear or Damage: During a visual inspection, you might notice that the camshaft seal appears worn, cracked, or damaged, which can indicate that it is failing or about to fail.If you suspect a camshaft seal failure, it is important to address the issue promptly. Ignoring a leaking camshaft seal can lead to more severe engine problems, including damage to the timing belt or chain, and potentially catastrophic engine failure. It is advisable to have a professional mechanic inspect and replace the seal if necessary.
